Capture Bridge Javascript SDK

The Capture Bridge Javascript SDK contains classes for working with the service's HTTP API in a web browser or Electron application.

Contents

Overview of Available Classes 🔗

  • Camera - Contains methods for capturing photos and live feed frames from a Camera.
    • CanonCamera - Class for working specifically with a Canon Camera.
    • MockCamera - Class for working with a Mock Camera and allows for testing and development without a physical camera.
  • Scanner - Contains methods for scanning documents from a document scanner.
  • SignatureTablet - Contains methods for capturing capturing signatures and updating a tablet's display.
  • ICAO - Contains methods for performing ICAO verification on an image.
  • IFace - Innovatrics IFace SDK.
    • Candidate - A Candidate Photo against which a probe photo is compared.
    • Probe - A Probe image that is compared against one or more candidates.
  • CaptureBridge - Class for retrieving plugins and working with the HTTP Service.
  • Plugin - Class for working with a plugin and retrieving devices that a plugin supports.
  • Device - Class representing a device and methods that can be called on a device.
  • Logs - Stream plugin logs.

Samples 🔗

The following sections contain links to complete examples utilizing the SDK.

Canon Camera

Mock Camera

Windows Scanner

Verifone

ICAO

IFace

Topaz Signature Pad

Installation Methods 🔗

Script Tag and Static Import

The SDK can be loaded from a <script> tag within an HTML document, in either the <head> or <body> tags. It's crucual to specify type="module" in order for the static import declarations to work as expected. You may either load these scripts from the Capture Bridge service at the base path of /sdk/js, or you may copy the SDK files to another web server or CDN.

HTML document

<html>
<head>
  <title>Capture App</title>
  <meta name="capturebridge:url" content="https://local.capturebridge.net:9001"/>
</head>
<body>
  <script type="module" src="./app.js"></script>
</body>
</html>

Example app.js script:

import CanonCamera from 'some/path/to/capture_bridge/sdk/js/CanonCamera.js'

// or to load it from Capture Bridge itself, note your installation of Capture
// Brige may be hosted at a different URL and you will need to adjust accordingly:
// import CanonCamera from 'https://local.capturebridge.net:9001/sdk/js/CanonCamera.js'

const camera = new CanonCamera()

// utilize camera methods...

NPM

The SDK can be installed from NPM and added to your project's package.json and bundled along with your bundler of choice:

npm install --save @capturebridge/sdk

Locating the Capture Bridge Service 🔗

By default, the SDK will use the browser Window's origin for locating the Capture Bridge service. For example, if the SDK is running from the origin https://domain.tld, the SDK will attempt to make HTTP requests to https://domain.tld/plugin to get a list of plugins. Therefore you will likely need to manually specify the BASE_URL for your specific Capture Bridge service's configuration.

The SDK will look in the following locations, in the following order, for a Base URL:

Meta Tag

A <meta> tag in the document's <head> with the name capturebridge:url can specify the desired URL to use, for example:

<html>
<head>
  <title>Capture App</title>
  <meta name="capturebridge:url" content="https://local.capturebridge.net:9001"/>
</head>
<body></body>
</html>

It is crucial to include this meta tag before the SDK is loaded.

window.CAPTURE_BRIDGE_URL

You can set the Base URL on the global Window object, for example:

window.CAPTURE_BRIDGE_URL = 'https://local.capturebridge.net:9001'

It is crucial to set this variable before the SDK is loaded.

Individual Constructor Overrides

You may also override the Base URL in the constructor of each SDK Class, for example:

const camera = new CanonCamera('https://local.capturebridge.net:9001')

Overriding the URL in a constructor takes precedence. This can also be useful for targeting remote Capture Bridge instances.

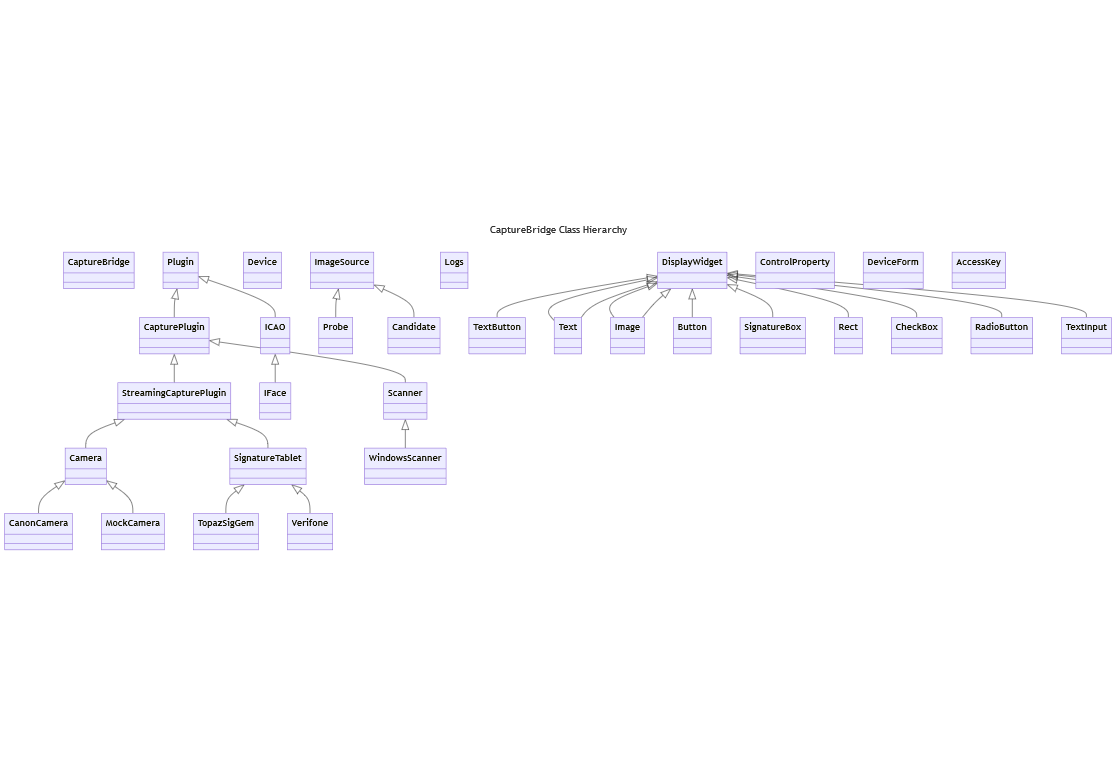

Class Hierarch 🔗
